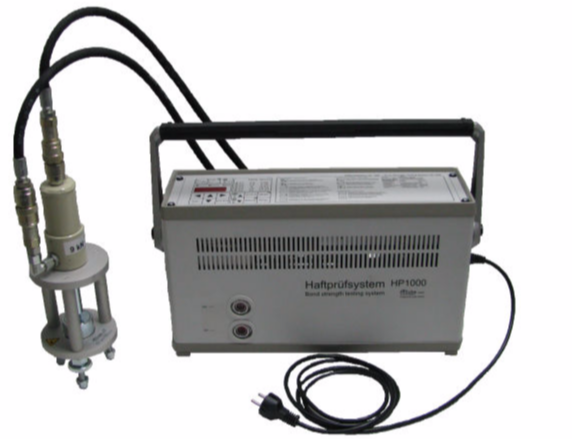

Control Unit HP 1000

The HP 1000 is a durable laboratory device for determining the bond strength of coatings, which meets the requirements of DIN 51220 class 2.
Its simple operation, combined with electronic test sequence control, guarantees a safe experimental procedure and eliminates errors.

Modular principle

Different thrust pistons and test plungers can be combined to ensure the optimal fit for different applications

Suitable for many applications

Linear rate of force rise, automatic and adjustable break detection, saves the last measurement value

Mobirise

Compact

Intended for laboratory use or production monitoring, but can also be used anywhere.

Robust

Made from anodized aluminium in a steel casing, outfitted with low leakage flatface quick couplings.

Specifications:

Pump output:

0,3 l/min

Power connection:

110..230V,50..60Hz

Hydraulic operating pressure:

100 bar

Weight:

16 kg

Motor power:

100 W

Dimensions:

20x11x6 inch

Please note:

The HP 1000 can only be operated standing upright, otherwise air will be trapped in the hydraulic system and impede operations.

Bleeding air from the system

To bleed the air from the system, put the control unit on a table and put the thrust pistons on the ground. Extend and retract the piston rod until the air is purged from the system.
